Based On: Blackout Effectors Crystal Dagger

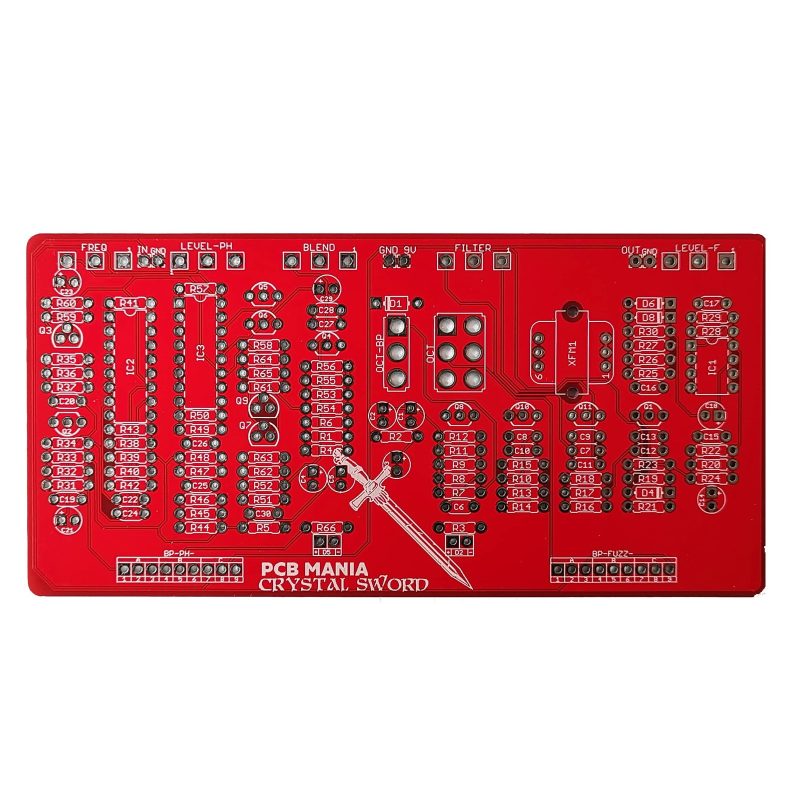

Crystal Sword by PCB Guitar Mania

The Crystal Sword is a dual harmonic device that combines a scorching octave-up fuzz and a unique conglomeration of ring modulation, unpredictable octaving, and phasing. It has two independent circuits, each with its own controls, that can be used individually or blended together. The fuzz side has filter and volume knobs and a toggle switch that activates the octave-up effect. The ring modulator side has carrier-frequency tuning and volume knobs. The board is designed to allow players to craft their own unique tones, with smooth lows and mids and a not-too-piercing high end. The controls include Level-Fuzz, Filter, Blend, Level-Phaser, Freq, Oct-Bypass, and Oct.

Download Schematic

More info from the Original Website (or PCB order)

Additional information

Based On

Blackout Effectors Crystal Dagger
