| Based On | Insipired by Aclam Dr. Robert |
|---|
Schematics, circuits, PCBs and veroboards for guitar effects pedals.

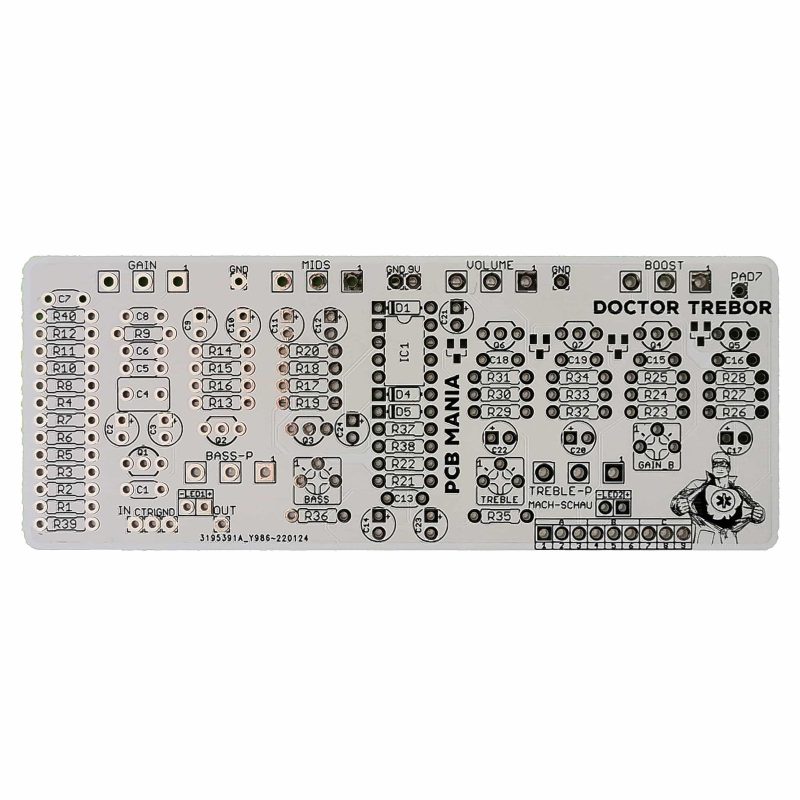

Introducing Dr. Trebor, the affordable way to experience the Vox UL730 Amplifier! This pedal is an uncanny replica of the original that ensures great sound quality at an unbeatable price. It was inspired by the Vox amps of the 1960s, which were used by the Beatles, Rolling Stones, The Who, Jimmy Page, and many other legends. Dr. Trebor has a simple but effective control set. It includes five potentiometers: Bass, Bass-P, Gain-B, Treble, and Treble-P, as well as one switch, Mach-Schau. The board is wired similarly to the UL730, with the midrange control shaping the pedal’s tone and gain profile before interacting with an amplifier’s bass/treble tone stack. This pedal is perfect for those who want to experience the legendary sound of the Vox UL 730 without breaking the bank. It’s a lot of fun and very authentic sounding, so you can twist and shout just by hearing it! Now is your time to take a sad song and make it better. All you need is love, and Dr. Trebor!
Download Schematic
