| Based On | Seymour Duncan Dirty Deed™ |
|---|
Schematics, circuits, PCBs and veroboards for guitar effects pedals.

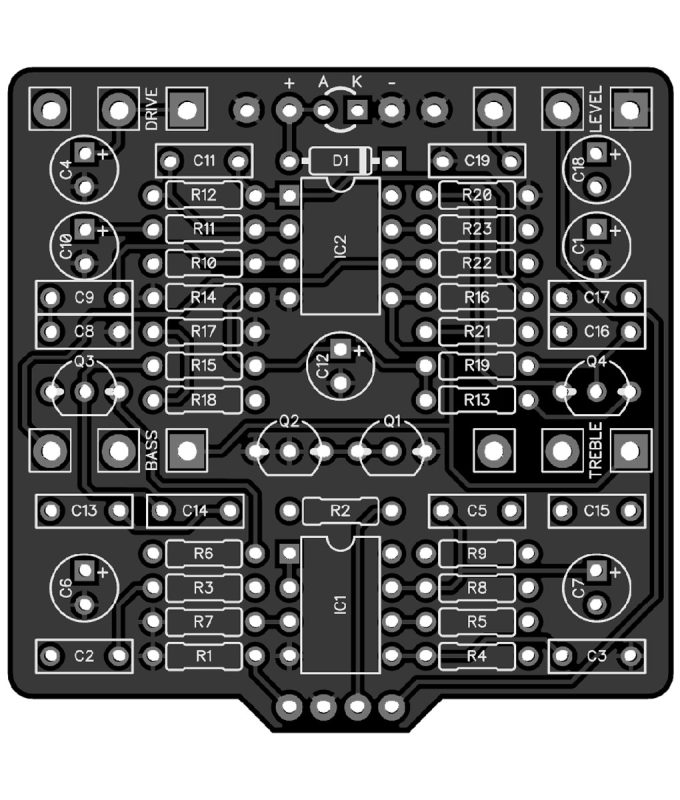

The Dunder Chief Distortion is a distortion pedal that takes inspiration from the Seymour Duncan Dirty Deed™. It features four controls: Level, Drive, Treble, and Bass.
The Level control adjusts the overall output volume of the pedal. By turning it clockwise, you can increase the volume, and by turning it counterclockwise, you can decrease it.
The Drive control is responsible for adjusting the amount of distortion or gain in the signal. Turning it up will increase the intensity of the distortion, while turning it down will result in a cleaner sound.
The Treble control allows you to adjust the high-frequency content of the distorted signal. By turning it clockwise, you can boost the treble frequencies, adding brightness and clarity to your tone. Turning it counterclockwise will have the opposite effect, reducing the treble frequencies.
The Bass control, on the other hand, allows you to adjust the low-frequency content of the distorted signal. Turning it clockwise will boost the bass frequencies, adding depth and warmth to your tone. Turning it counterclockwise will reduce the bass frequencies.
Download Schematic
