Additional information
| Based On | EQD Tone Reaper |
|---|
Schematics, circuits, PCBs and veroboards for guitar effects pedals.

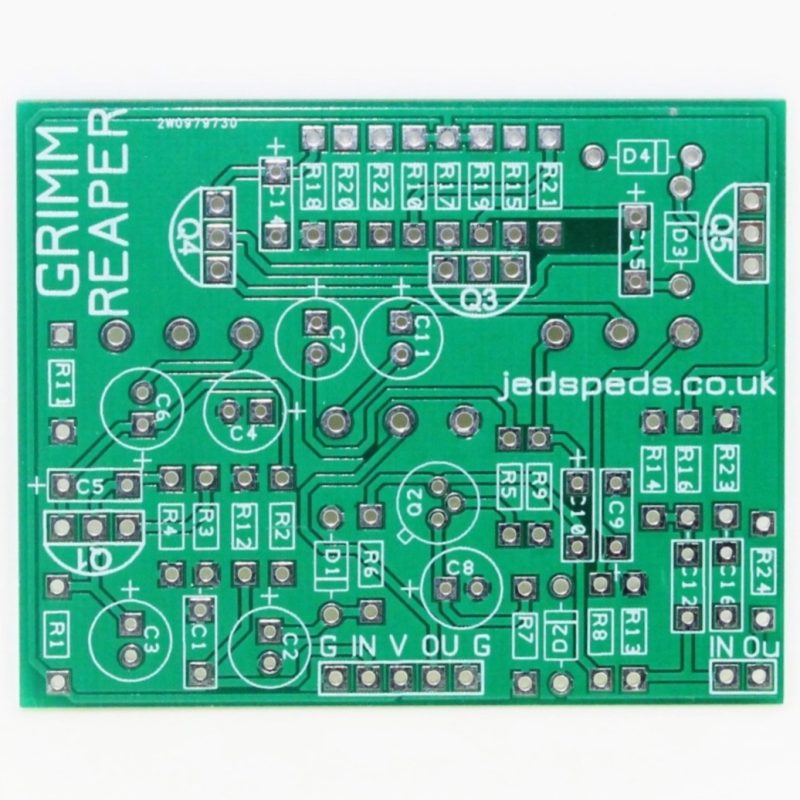

The Grimm Reaper is a modified version of the EQD Tone Reaper, which is itself a modified Tone Bender. It features three knobs for control and is a hybrid fuzz pedal that combines silicon and germanium components. Unlike the Green Reaper kit, the top half of the PCB in the Grimm Reaper remains empty as it does not include an octave section. The modifications to the circuit are internal, making it a unique variation of the original design.
Download Schematic
