| Based On | LPD Sixty8 |
|---|
Schematics, circuits, PCBs and veroboards for guitar effects pedals.

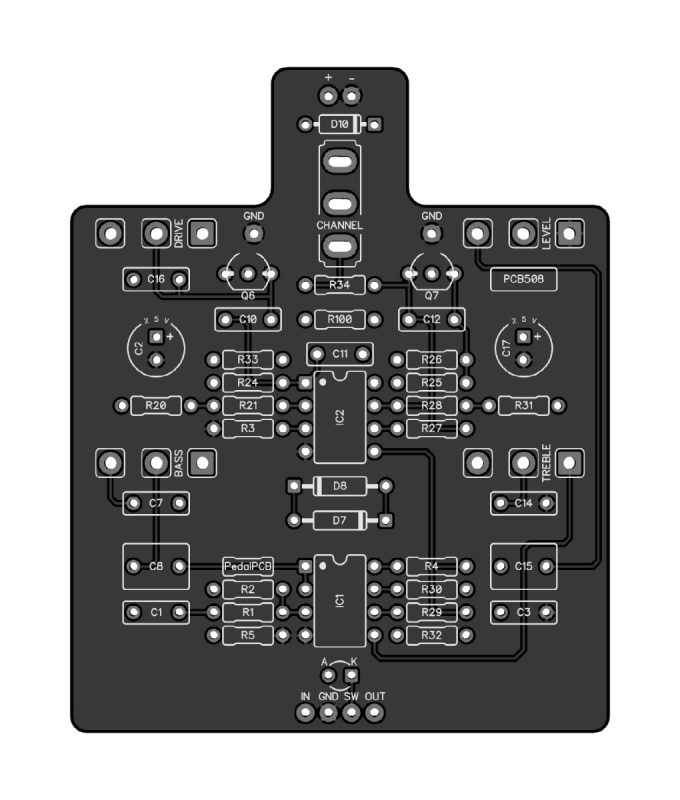

The Jump Drive is a pedal that takes inspiration from the LPD Sixty8. It features four controls: Level, Drive, Treble, and Bass. The Level control adjusts the overall output volume of the pedal. The Drive control determines the amount of gain or distortion applied to the signal. The Treble control allows you to boost or cut the high frequencies, while the Bass control does the same for the low frequencies. Additionally, the pedal includes a Channel toggle switch, which allows you to switch between different tonal options.
Download Schematic
