Based On: Maestro FSH-1 Filter Sample / Hold

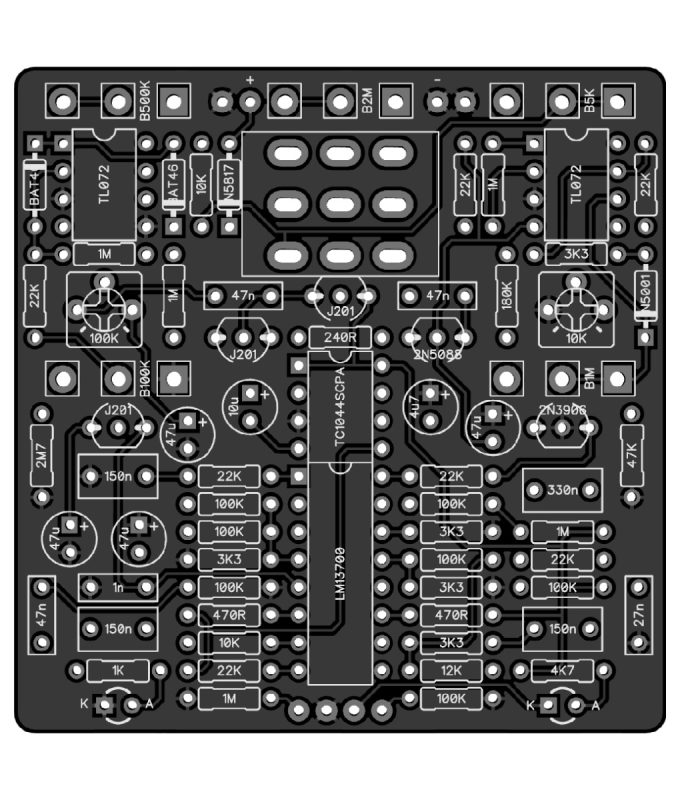

Minnow by PedalPCB

The Minnow is a pedal that takes inspiration from the Maestro FSH-1 Filter Sample / Hold. It features several controls that allow for versatile sound shaping. The Attack control adjusts the speed at which the effect is applied to the signal. The Resonance control determines the intensity of the resonance in the filtered sound. The Decay control sets the length of time it takes for the effect to fade out after the input signal stops. The Speed control adjusts the rate at which the filter sweeps through the frequency range. The Filter control allows for manual adjustment of the filter cutoff frequency. Additionally, the pedal includes a toggle switch that toggles between the Filter and Sample Hold modes.

Download Schematic

More info from the Original Website (or PCB order)

Additional information

Based On

Maestro FSH-1 Filter Sample / Hold
