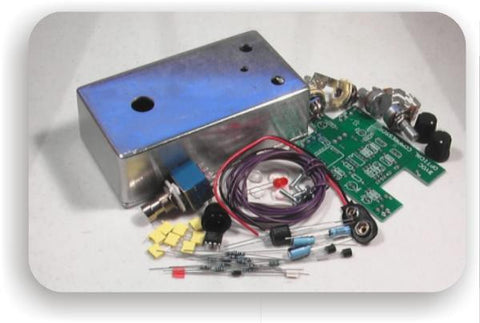

Optical Compressor by Build Your Own Clone (BYOC)

The Optical Compressor is a pedal designed for guitarists who want a transparent, studio-like sound without the snappy rubber band attack of other compressors. It offers a subtle compression effect that is barely noticeable when turned on, but greatly missed when turned off. The pedal features two knobs, one for compression and one for output level. The compression knob allows for a wide range of squishy compression effects, providing a strangle hold on the signal when turned up. The pedal can be powered by a single 9V battery or a 9V DC power supply, and it can also work with 12V, 15V, or 18V DC power supplies for increased headroom.

Download Schematic

More info from the Original Website (or PCB order)
