Based On: Carl Martin Panama

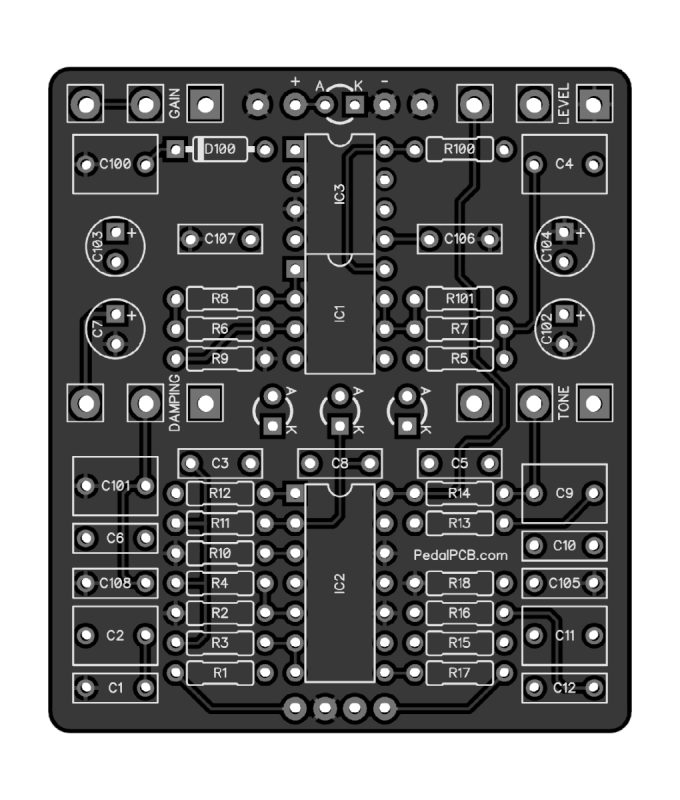

Unchained Overdrive by PedalPCB

The Unchained Overdrive is a pedal that is inspired by the Carl Martin Panama. It features four controls: Volume, Gain, Tone, and Damping. The Volume control allows you to adjust the overall output level of the pedal. The Gain control adjusts the amount of overdrive or distortion that is added to your signal. The Tone control allows you to shape the frequency response of the pedal, allowing you to dial in the desired amount of brightness or darkness. The Damping control adjusts the overall feel and response of the pedal, allowing you to control the tightness or looseness of the sound.

Download Schematic

More info from the Original Website (or PCB order)

Additional information

Based On

Carl Martin Panama
