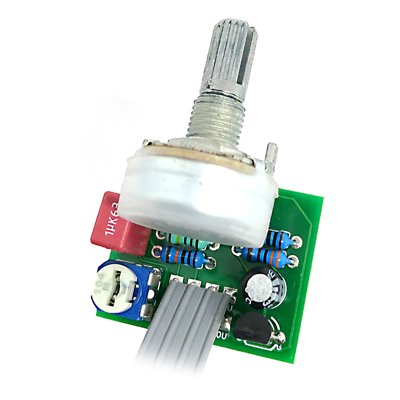

The Blender signal mixer is a versatile circuit that allows you to blend two signals together. It is particularly useful for bass players who want to retain their low-end while using effects pedals. By connecting your original signal to the IN and OUT jacks, and another signal to the SND and RCV jacks, you can mix the two signals together using the blend pot.The circuit also includes a trimmer that allows you to adjust the volume level of the SND and RCV path. This can be useful if you want to control the level of the mixed-in signal. You can even replace the trimmer with an external potentiometer if you prefer.The Blender circuit includes input capacitors for both guitar and bass signals, ensuring compatibility with both instruments.There are several reasons why you might want to use a signal blender. If you are a bass player, you can use a guitar fuzz pedal while still maintaining the low-end of your bass by blending in the dry signal. This allows you to achieve a distorted tone without sacrificing the fundamental frequencies of your bass.If you are an experimenter or a pedal builder, you can use the Blender circuit to create an effects loop pedal with signal level control. This means you can insert other effects pedals into the loop and adjust their volume level using the trimmer or external potentiometer.Overall, the Blender signal mixer is a useful tool for musicians and pedal enthusiasts who want to blend signals together and have control over the volume levels.
