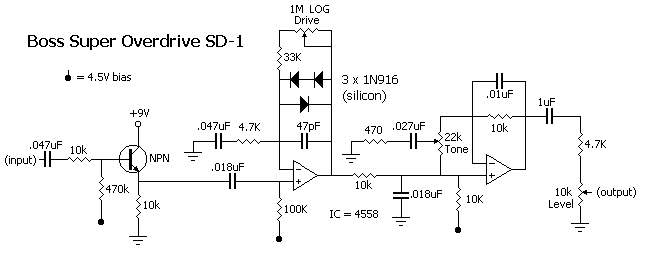

These were originally sold without the tone control. The design is nearly identical to the Ibanez Tube Screamer with 2 important changes. More boost is available, but is partly offset by using 2 diodes in one direction and only one in the other. This produces asymmetrical soft clipping, meaning that one side of the waveform is clipped more severely than the other. A more common implementation of asymmetrical clipping is to use 2 silicon diodes, with a germanium diode in series with one of them.

There is lively debate on the Internet about whether this sounds more natural, and whether it better emulates some asymmetric valve phase splitter designs. In any case, I think it does add a little character, and therefore suits humbucker guitars well.

by GM Arts
