Based On: Analogman King of Tone

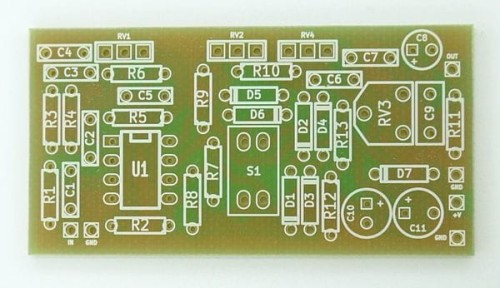

King Of Tone project by Guitar-Electronics.eu

The KING OF TONE is a legendary distortion pedal available in single and double versions. The double version features two independent circuits connected in series, each activated by a separate footswitch. Both sections have additional DIP switches that allow you to select the type of clipping circuit or even disconnect it entirely, transforming the pedal into a booster. This versatility makes it capable of producing a wide range of tones, from subtle overdrive to thick, saturated rock sounds.

To further shape your sound, the KING OF TONE includes a presence trimmer on the board, enabling you to control the treble frequencies. With this feature, you can fine-tune the pedal’s output to suit your preferences and match it with different amplifiers or guitars.

Download Schematic

More info from the Original Website (or PCB order)

Additional information

Based On

Analogman King of Tone
