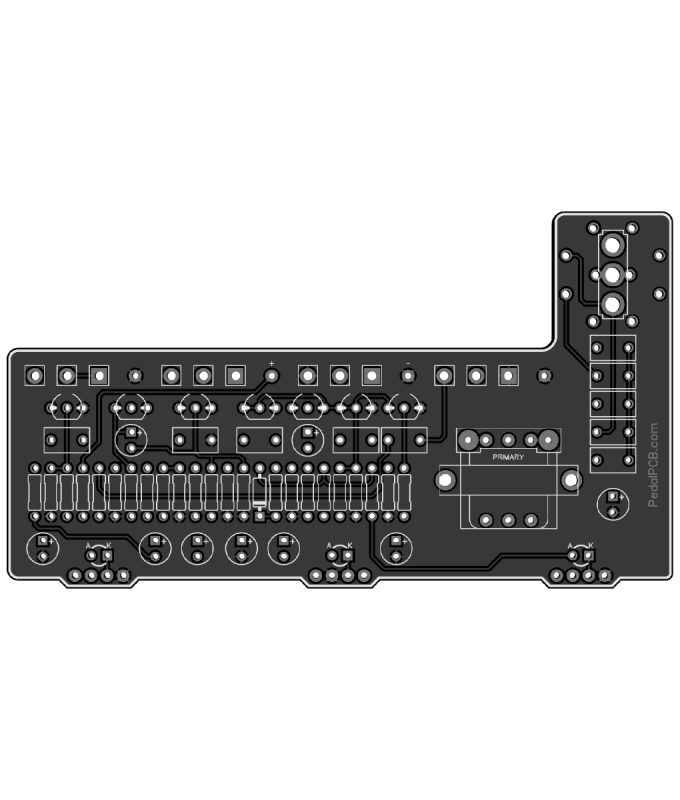

Schematics, circuits, PCBs and veroboards for guitar effects pedals.
The Mystery Machine is a pedal inspired by the Castledine Magical Mystery Box. It features several controls including MRB (which can be a rotary or toggle switch), Volume, Bass, Treble, and Distortion. The MRB control allows you to select different modes or settings on the pedal. The Volume control adjusts the overall output level of the pedal. The Bass and Treble controls allow you to shape the tone by boosting or cutting the low and high frequencies respectively. The Distortion control adjusts the amount of distortion or overdrive applied to the signal. The pedal also includes two footswitches – one for MRB activation or bypassing the effect, and another for engaging the Distortion effect.
Download Schematic
