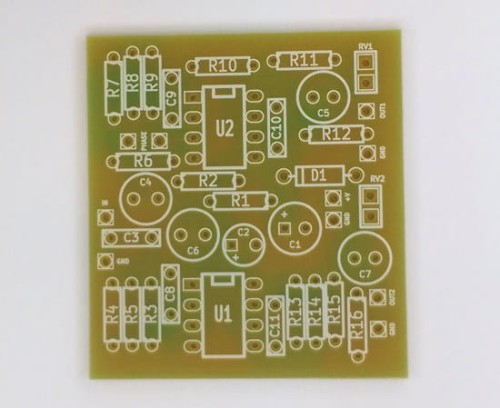

Signal Splitter project by Guitar-Electronics.eu

The Signal Splitter is a device designed to connect two amplifiers simultaneously or split a signal into two paths. It features a volume control and the option to reverse the phase in one channel, allowing for precise signal matching based on individual preferences.

Download Schematic

More info from the Original Website (or PCB order)
