Based On: EHX Small Clone Chorus

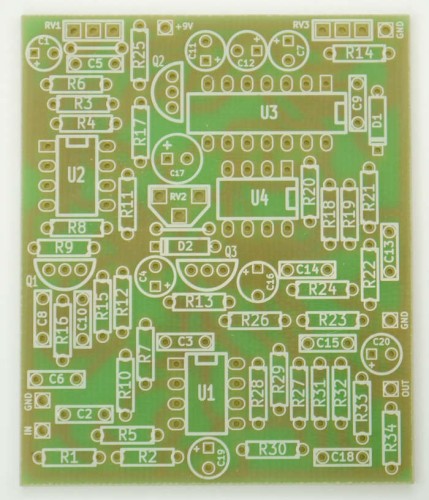

Small Clone Chorus project by Guitar-Electronics.eu

The Small Clone Chorus is an analog chorus pedal that provides a beautiful and warm sound. It is based on the BBD (Bucket Brigade Device) delay technology. Initially, the pedal only had a switch to select between fixed levels, which was inconvenient for users. However, this issue has been resolved by adding a potentiometer that allows for depth adjustment.

The Small Clone Chorus offers a versatile range of chorus effects with the added control of the depth adjustment. This feature enables users to fine-tune the intensity of the chorus effect according to their preference. The pedal’s analog circuitry ensures a rich and organic sound, reminiscent of classic chorus effects.

The addition of the depth adjustment potentiometer enhances the overall user experience by providing more control over the chorus effect.

Download Schematic

More info from the Original Website (or PCB order)

Additional information

Based On

EHX Small Clone Chorus
