Additional information
| Based On | Mad Professor Simble Overdrive |
|---|
Schematics, circuits, PCBs and veroboards for guitar effects pedals.

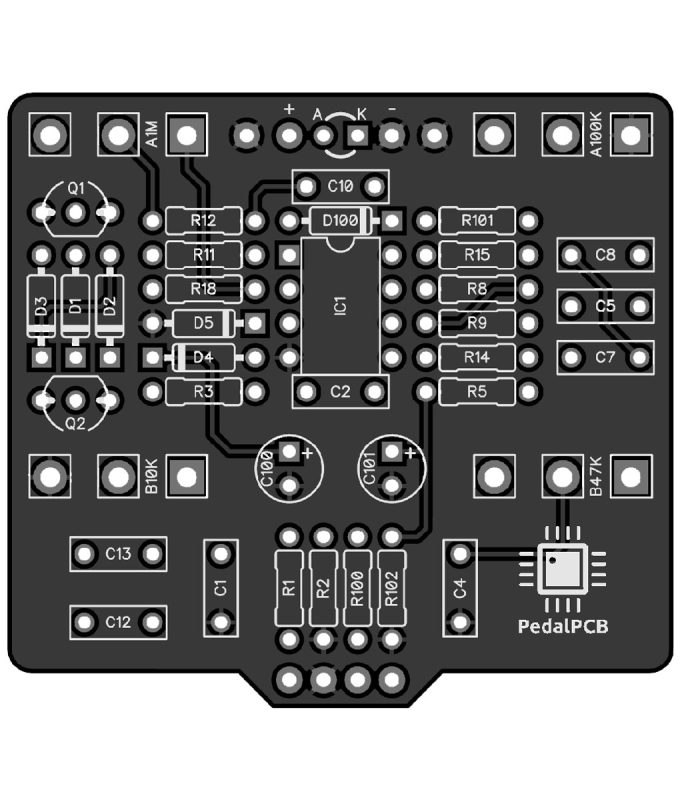

The Symbolic Overdrive is a pedal that is inspired by the Mad Professor Simble Overdrive. It features three main controls: Level, Sensitivity, and Contour Accent.
The Level control adjusts the overall output volume of the pedal. By turning it clockwise, you can increase the volume, and by turning it counterclockwise, you can decrease it.
The Sensitivity control is responsible for adjusting the amount of gain or overdrive in the signal. Turning it clockwise will increase the gain, resulting in a more saturated and distorted tone. Conversely, turning it counterclockwise will decrease the gain, resulting in a cleaner and more transparent sound.
The Contour Accent control is a unique feature of the Symbolic Overdrive. It allows you to shape the tone by adjusting the midrange frequencies. By turning it clockwise, you can boost the midrange frequencies, adding more presence and punch to your sound. Turning it counterclockwise will cut the midrange frequencies, resulting in a smoother and more vintage tone.
Download Schematic
