| Based On | EQD Data Corrupter |
|---|
Schematics, circuits, PCBs and veroboards for guitar effects pedals.

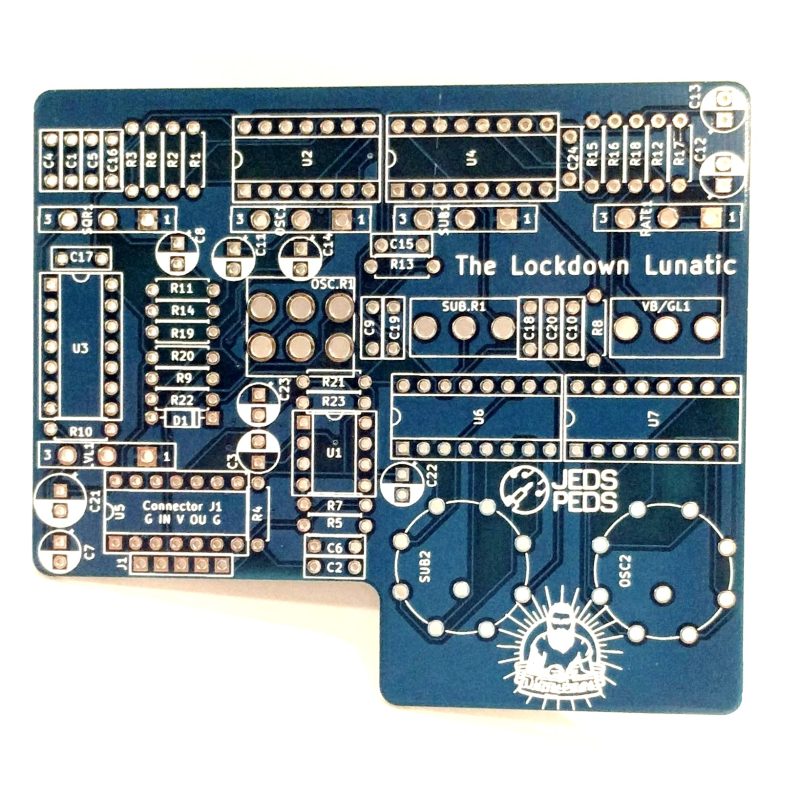

The Lockdown Lunatic is a monophonic analogue harmonizing PLL with modulation, based on the EQD Data Corrupter. It amplifies your input signal into a square wave fuzz tone and creates a three-voice guitar synthesizer. The Main Oscillator is responsible for the Lunatic’s behavior, adding octaves, fuzz, waves, bending pitches, and adding vibrato and sub harmonic intervals. This pedal is not meant for musical purposes but rather as a synthy noise maker that corrupts any input signal.
The Lockdown Lunatic kit includes various knobs and controls such as Square, Oscillator, Sub harmony, Rate, Vibrato, Sub 1 and 2, Oscillator 1 and 2. It also features 5 pots, 3 toggles, and 2 rotary switches.
Download Schematic
