Additional information
| Based On | JHS Charlie Brown v4 |
|---|
Schematics, circuits, PCBs and veroboards for guitar effects pedals.

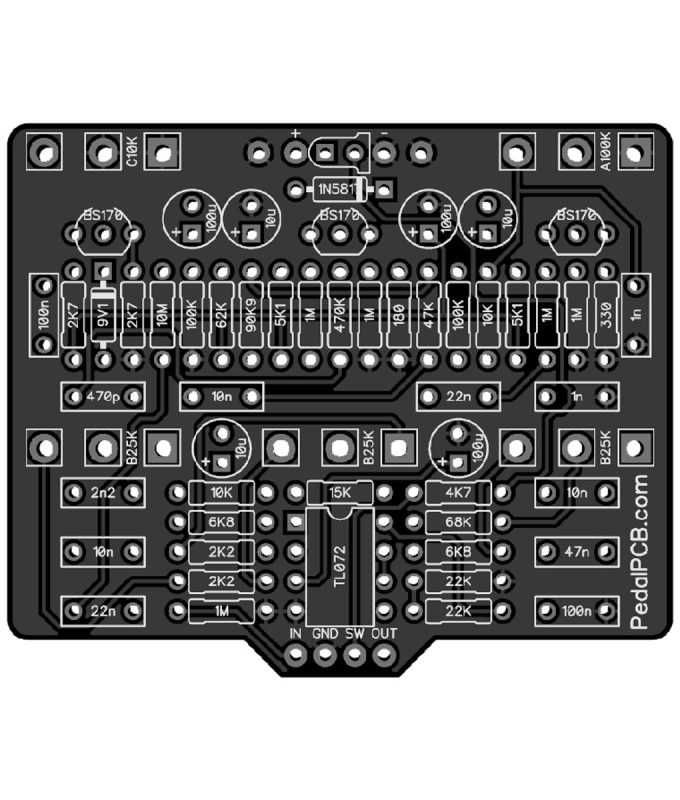

The Van Pelt Drive is a pedal that is inspired by the JHS Charlie Brown v4. It features several controls that allow you to shape your tone. The Volume control adjusts the overall output volume of the pedal. The Drive control determines the amount of signal gain, allowing you to dial in the desired level of overdrive. The Treble control adjusts the level of high-frequency tones, giving you the ability to add or cut treble frequencies. The Mid control allows you to adjust the level of midrange frequencies, giving you control over the midrange character of your tone. Lastly, the Bass control adjusts the level of low-frequency tones, allowing you to add or cut bass frequencies.
Download Schematic
