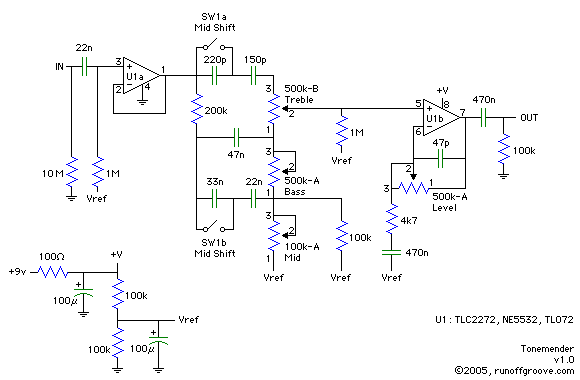

The Tonemender is a versatile guitar pedal that functions as a clean boost with a 3-knob tonestack. It allows users to recreate the classic responses of Fender, Marshall, and Vox amplifiers. The pedal is designed to provide a high clean boost and dynamic range, and it is recommended to use a TLC2272 dual op-amp for optimal performance.

The Tonemender features a Mid Shift switch that allows users to select the center frequency of the midrange dip in the response. The switch can be set to the HI position for Marshall-style curves, the LO position for Fender-style curves, or kept in the HI position for Vox-style response. The Mid control can be adjusted between 12:00 and 5:00 for traditional Marshall settings, providing additional flexibility at lower settings.

In terms of equalization, a “flat” position can be achieved by setting the Bass and Treble knobs at minimum and the Mid control at its midpoint. When both Bass and Treble are fully cut, the Mid knob acts as an additional Level control, similar to the Fender tonestack characteristic. Overall, the Tonemender offers guitarists the ability to shape their tone with precision and recreate the iconic sounds of different amplifier brands.
