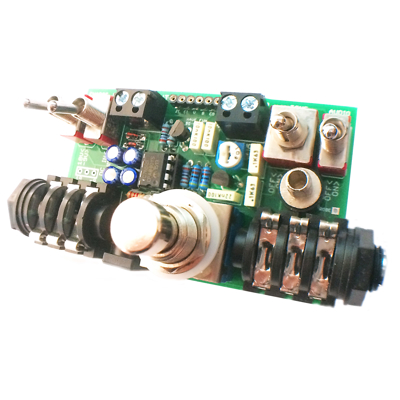

The Ultra Tester, also known as the Ultra Mega Testing Contraption, is a versatile tool designed for testing and troubleshooting circuits. It is particularly useful for electronics builders and enthusiasts.One of the key features of the Ultra Tester is its on-board charge pump, which can provide 9V, 18V, or -9V supply with just a flick of a switch or two. This allows you to easily test circuits that require different voltage levels.The Ultra Tester also includes a tone generator with adjustable volume. This feature allows you to have both hands free when troubleshooting, as you don’t need to keep strumming the strings or playing any sound manually. This can be especially helpful when trying to identify issues in a circuit.Additionally, the Ultra Tester has an audio probe wired directly on the board. This means that you can easily switch your output jack from normal output to probe output, allowing you to test and analyze the audio signals in your circuit.The Ultra Tester is compatible with both 4 and 6-way connections for Direct-Connect circuits, as well as standard wired connections for power and In/Out. This means that you can test a wide range of circuits using this tool.Since everything is board-mounted on the tester, there is very little that can go wrong when building it. This makes it a reliable and valuable tool to have on any builder’s bench.The design of the Ultra Tester was based on the excellent work of Delyk, and it was developed in collaboration with him. The creator expresses gratitude to Kyle for his contribution to the project.Overall, the Ultra Tester is a highly useful tool for testing and troubleshooting circuits, making it an invaluable asset for electronics builders.
